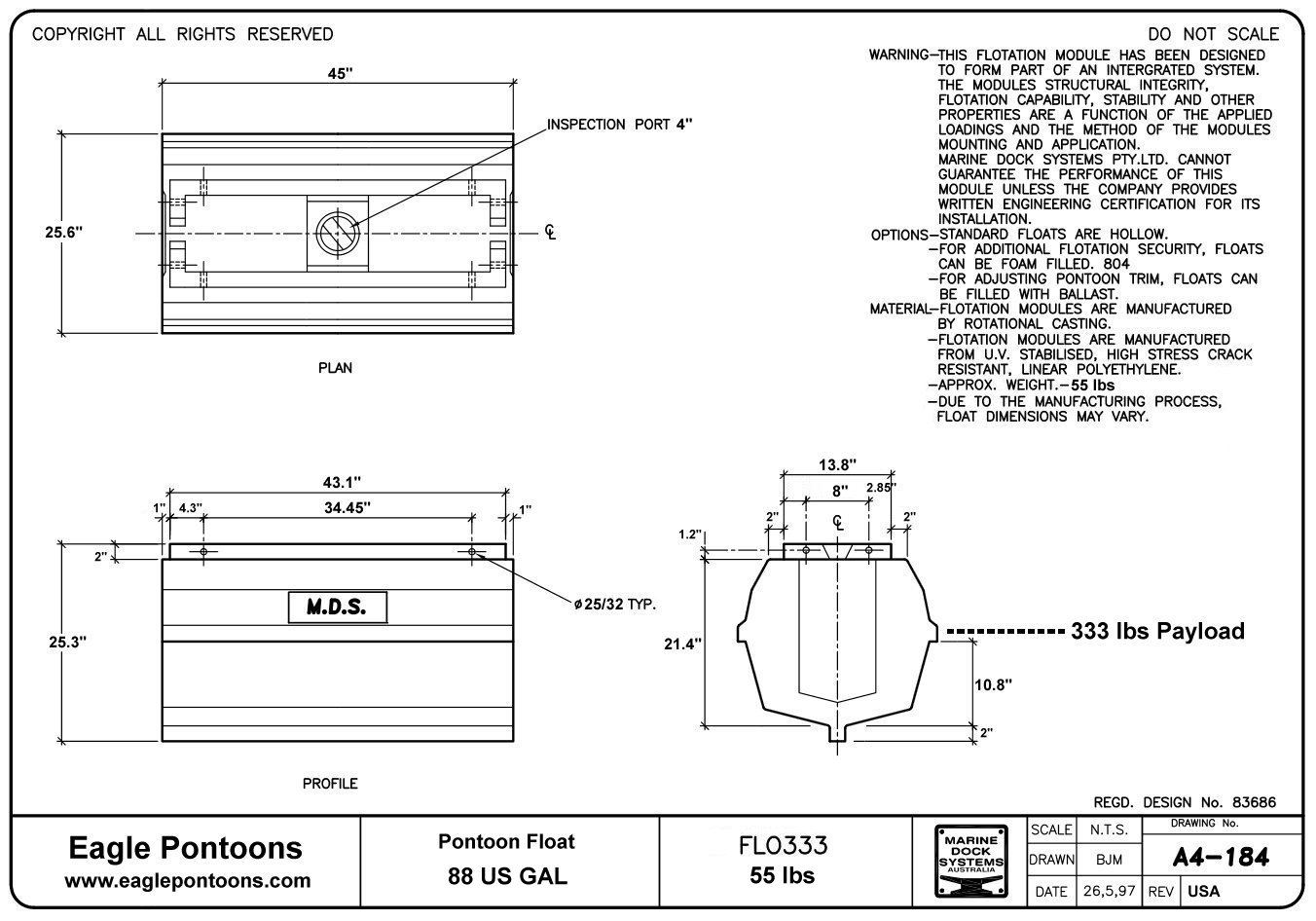

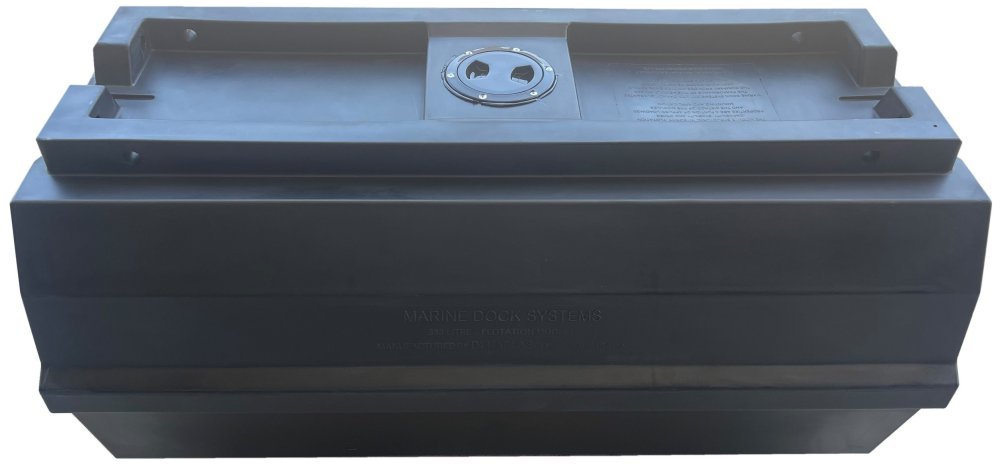

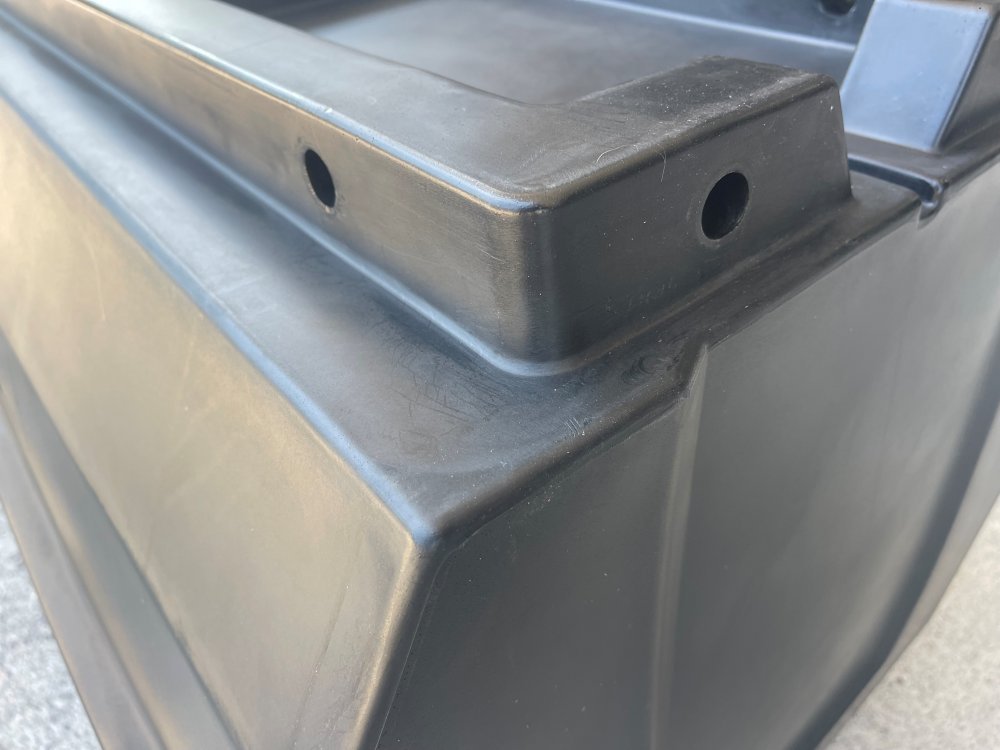

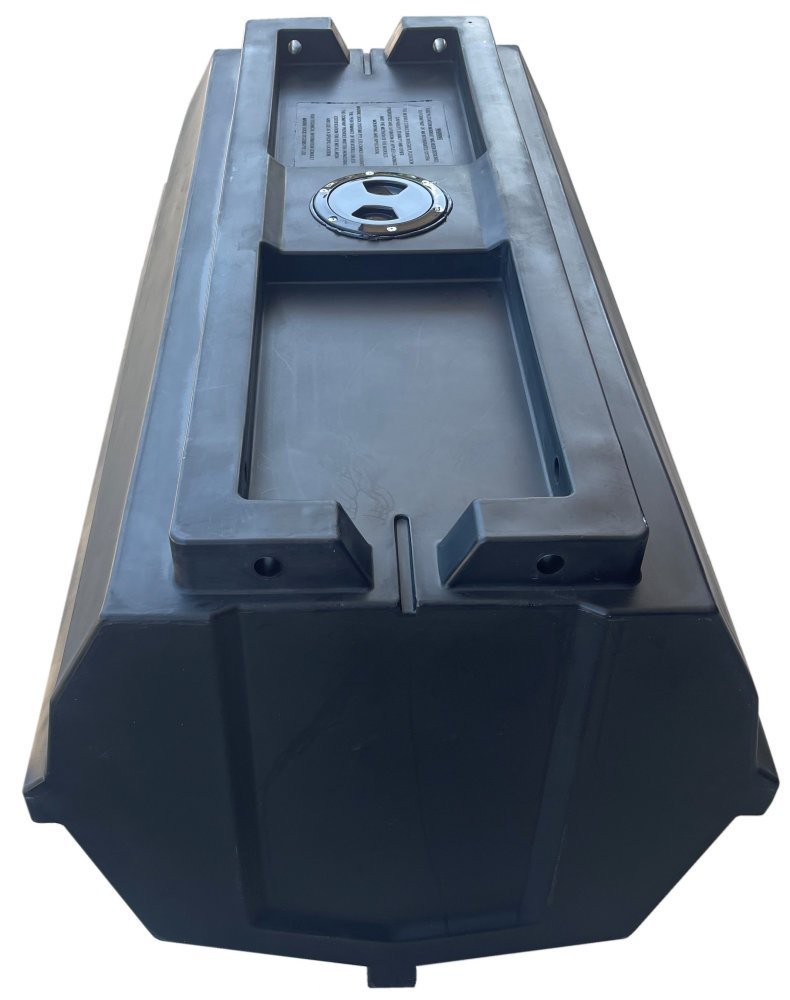

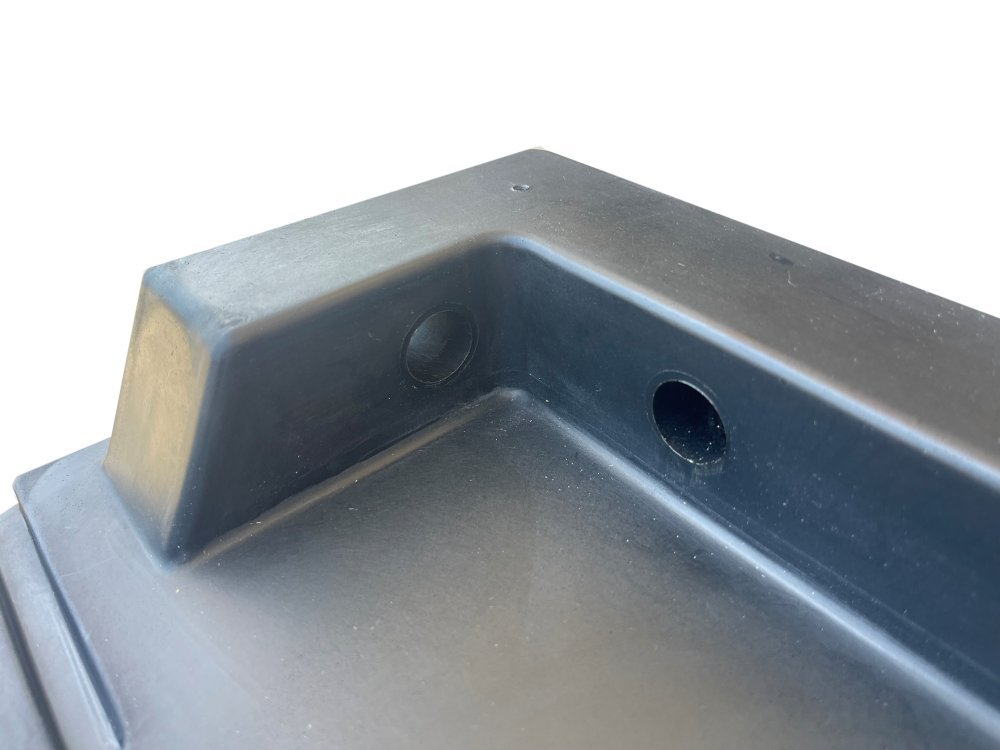

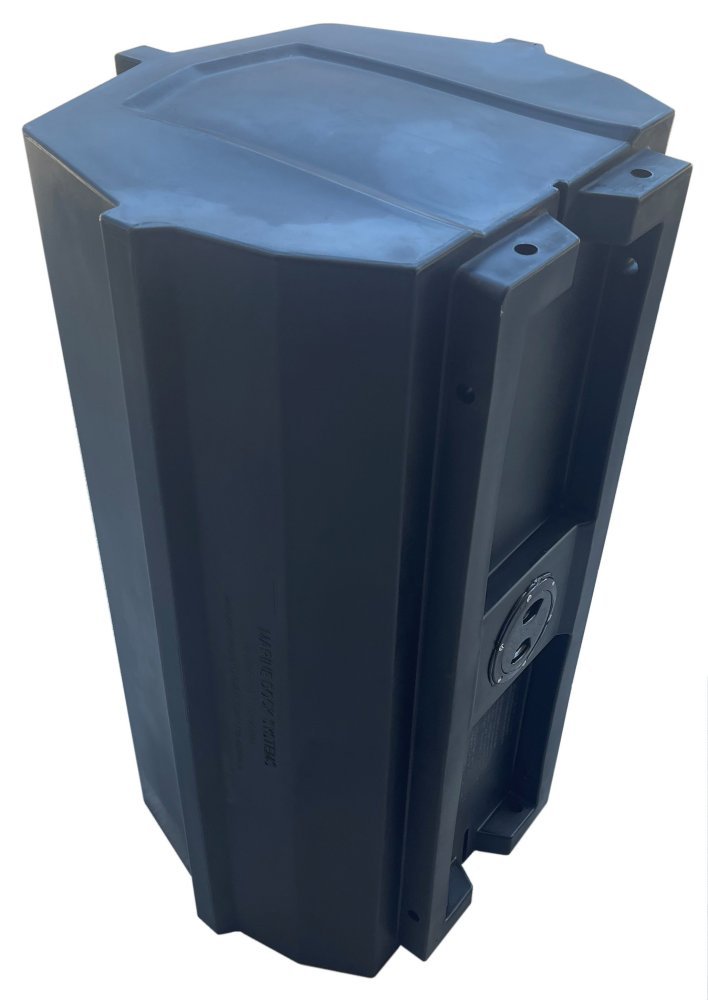

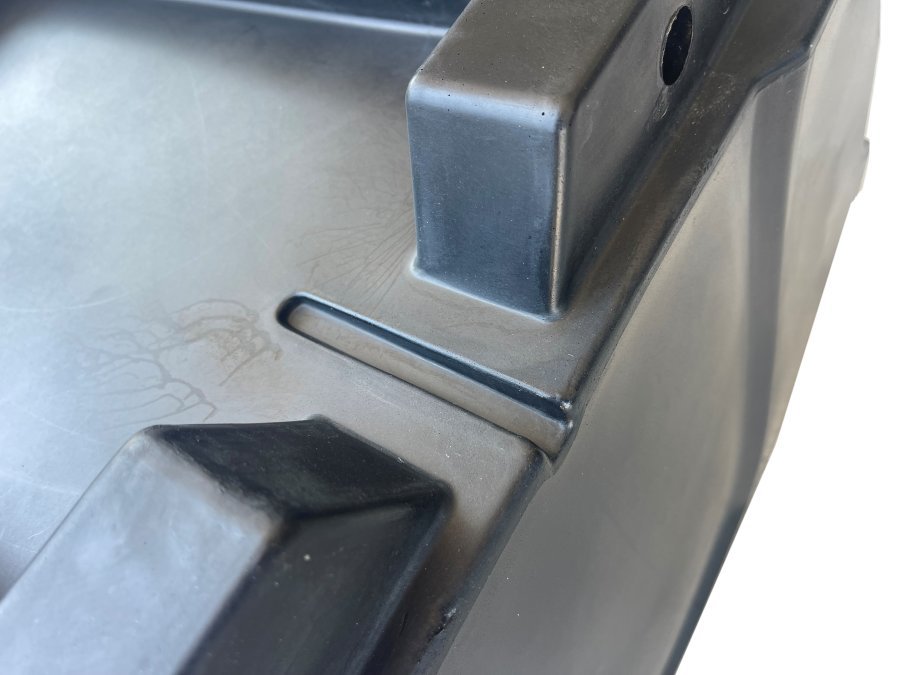

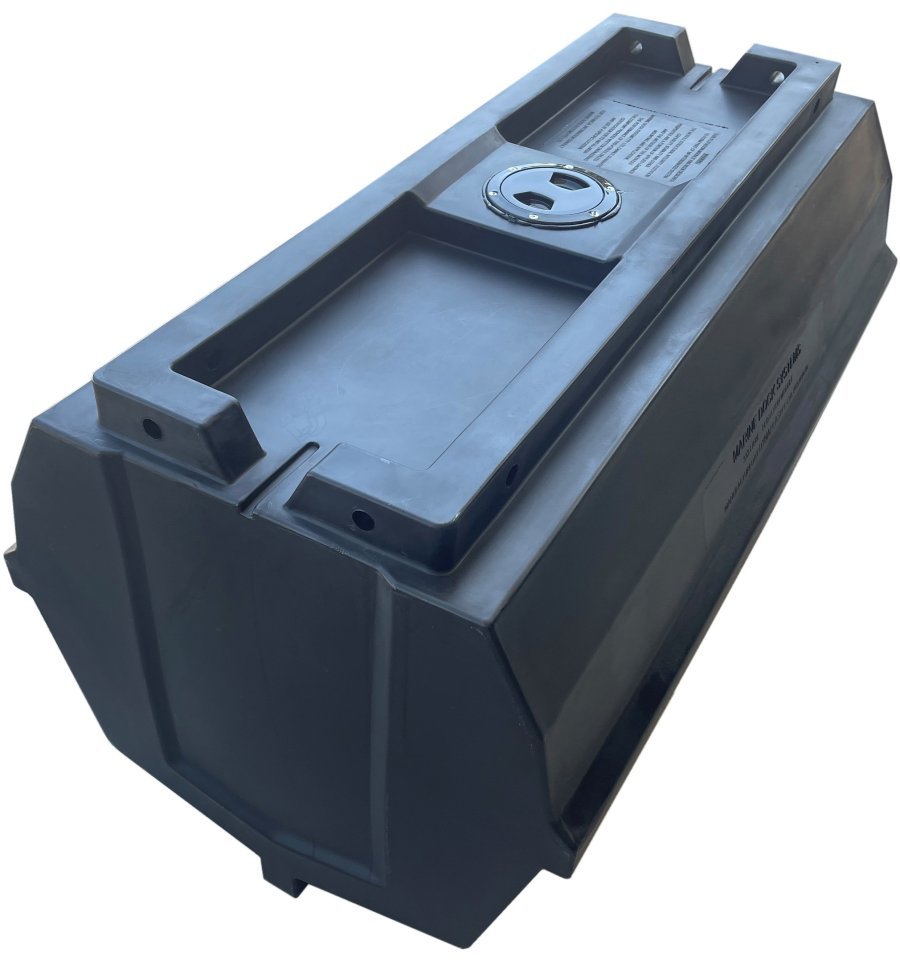

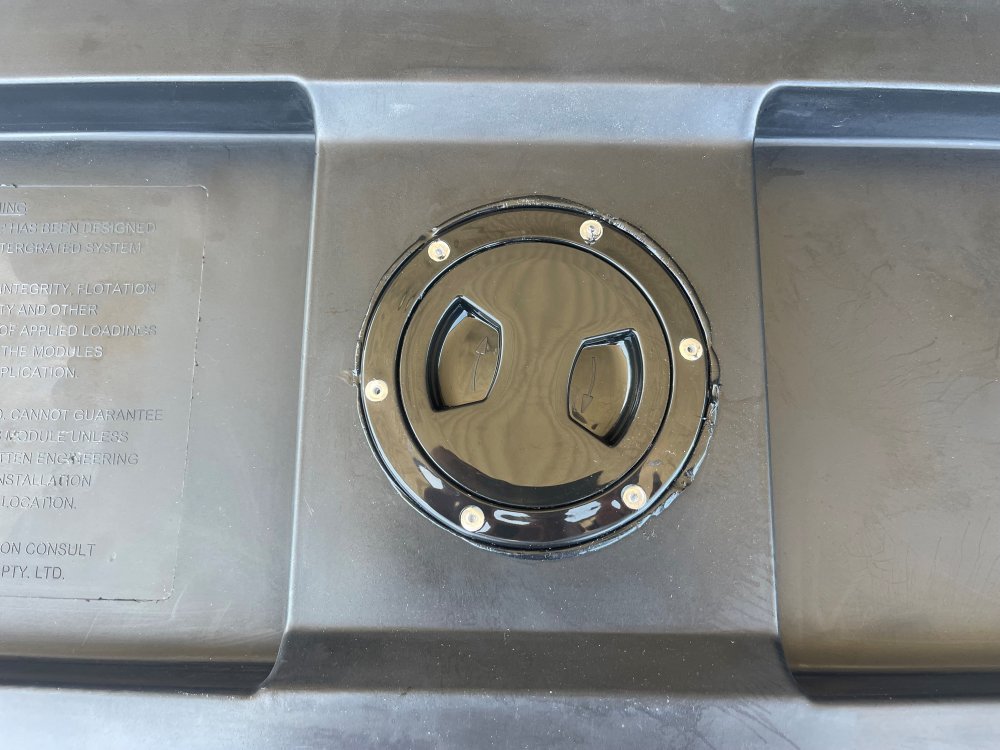

Tech Drawing End view Side view Long view Mounting lug Breather hole Inspection port Drain groove 88 Gallon Pontoon Hull Part #: FLO-333 Description: A versatile flotation device suitable for: Pontoon boat hulls (when paired with a matching nose cone) Dock construction Specifications: Volume 88 gallons Load Capacity 333 lbs (per float) Length 45 inches Width 25.6 inches Depth/Height 25.3 inches Material Polyethylene Tech Drawing Pontoon Nose Cone Part #: FLO-333NC Description: Designed to serve as the bow (front) section of a moving craft. When joined with the 88-gallon flotation module (FLO-333), it forms one of the hulls of a pontoon boat. The nose cone improves hydrodynamics and gives the front of the pontoon hull a streamlined shape for smoother movement through water. Specifications: Volume 40 gallons Load Capacity 44 lbs (each) Length 43.3 inches Width 25.6 inches Depth/Height 25.3 inches Material Polyethylene
